Havells · SKU: thagri11793

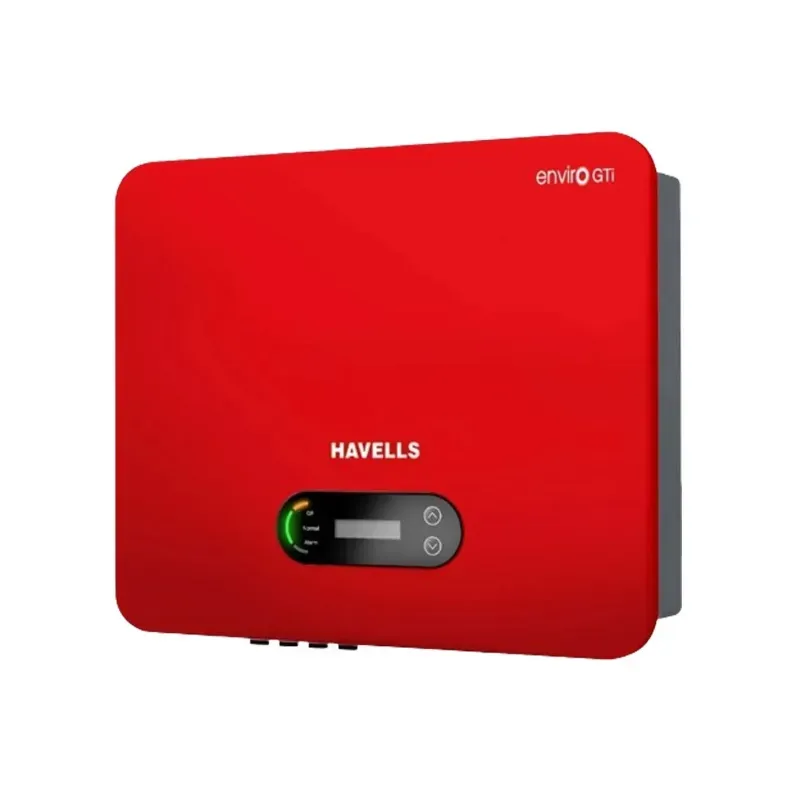

Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems
In Stock
₹1,16,325₹1,64,500-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Weight (Approx.) | 22 kg |
| Recommended Max. PV input power | 22500 Wp |
| Number of MPP trackers | 2 |
| Number of DC inputs | 2/2 |
| Max. Input voltage | 1100 V |
| Start-up voltage | 160 V |
| Rated input voltage | 650 V |
| MPPT operating voltage range | 140 V - 1000 V |
| Full power MPPT voltage range | 420 V - 850 V |
| Max. Input MPPT current | 26 A / 26 A |
| Max. input short circuit current per MPPT | 36 A / 36 A |
| Rated Power | 15000 W |
| Max. AC Power | 16500 VA |
| Max. Output current | 23.9 A |
| Nominal grid voltage | 3 / N / PE, 220 V / 380 Vac, 230 V / 400 Vac |
| Grid voltage range | 310 Vac - 480 Vac ( According to local standard ) |
| Nominal frequency | 50 Hz / 60 Hz |
| Active power adjustable range | 0~100 % |
| THDi | <3 % |
| Power factor | 1 default (adjustable+/-0. 8) |
| Max. efficiency | 98.60 % |
| European efficiency | 98.20 % |
| DC Reverse Polarity Protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV-array string fault monitoring | Yes |
| Anti reverse power function | Optional |
| DC switch | Yes |
| AFCI protection | Optional |
| Input / output SPD | PV: type II standard, AC: type II standard |
| Standard communication mode | RS485 / USB / Bluetooth, Optional: WiFi / GPRS |
| Ambient temperature range | -30 °C~+60 °C |
| Self-consumption at night | <1 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0~100 % |
| Max. Operating altitude | 4000 m |
| Noise | <40 dB |
| Cooling | Fan |
| Display | LCD |
| Dimension | 520 mm x 430 mm x 189 mm |
| EMC | EN61000-6-1, EN61000-6-3, EN61000-6-3-11, EN61000-6-3-12 |
| Safety standards | IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068 (1,2,14,30) |
| Three-Phase Grid Synchronization | Delivers balanced 3-phase AC output across lines for smooth operation with industrial machinery and commercial loads. |
| Dual MPPT Channel Tracking | Optimizes generation yield across two separate panel strings with $1.5\times$ DC overloading per MPPT. |
| Comprehensive Surge Protection | Inbuilt Type II SPDs on both DC and AC inputs protect sensitive electronics from grid surges and indirect lightning hits. |
| String-Level Intelligence | Features string-level monitoring to detect string performance anomalies and simplify system maintenance. |
| Remote Monitoring & Updates | Plug-and-play USB WiFi/GPRS logging enables online software upgrades and real-time app/web performance tracking. |
| Commercial Buildings & Malls | Powers large lighting networks, escalators, and HVAC units during peak sunlight hours. |
| Industrial Plants & Factories | Supplies green energy directly to 3-phase heavy machinery, reducing demand charges from local utilities. |
| Educational Campuses & Hospitals | Lowers daytime electricity bills for universities, schools, and medical centers. |
| Commercial Solar Farms & Agricultural Pumping | Ideal for large rooftop arrays and ground-mounted solar plants with 3-phase grid connections. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems
Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Havells. Key specifications include weight (approx.) 22 kg, recommended max. pv input power 22500 Wp, number of mpp trackers 2, number of dc inputs 2/2, max. input voltage 1100 V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems specifications
| Weight (Approx.) | 22 kg |
|---|---|
| Recommended Max. PV input power | 22500 Wp |
| Number of MPP trackers | 2 |
| Number of DC inputs | 2/2 |
| Max. Input voltage | 1100 V |
| Start-up voltage | 160 V |
| Rated input voltage | 650 V |
| MPPT operating voltage range | 140 V - 1000 V |
| Full power MPPT voltage range | 420 V - 850 V |
| Max. Input MPPT current | 26 A / 26 A |
| Max. input short circuit current per MPPT | 36 A / 36 A |
| Rated Power | 15000 W |
FAQs related to Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems
Does Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems come with a warranty or after-sales support?
+
Warranty terms for Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
What if Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Are spare parts or accessories for Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems also available on ToolHaat?
+
Many Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Is a GST invoice provided for Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems purchases?
+
Yes, every Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Can dealers or distributors get a custom quote for Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Havells 15 kW Enviro GTi 15KT NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Industrial Solar Systems orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
