Havells · SKU: thagri3800

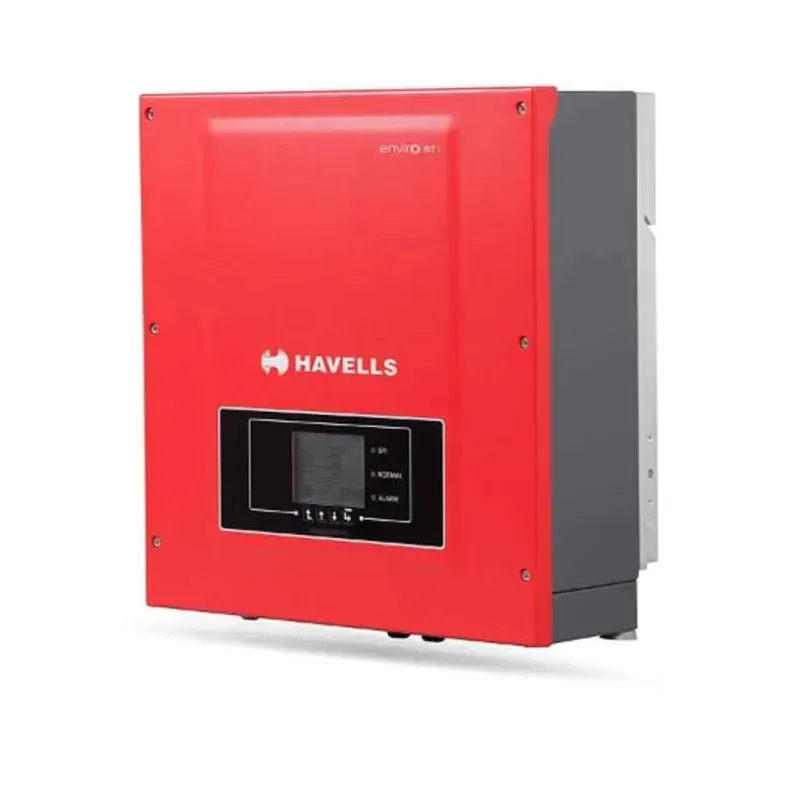

Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops
In Stock
₹91,575₹1,29,500-29% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Havells |
| Weight (Approx.) | 18 kg |
| Recommended Max. PV input power | 15000 Wp |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1/1 |
| Max. Input voltage | 1100 V |
| Start-up voltage | 160 V |
| Rated input voltage | 650 V |
| MPPT operating voltage range | 140 V - 1000 V |
| Full power MPPT voltage range | 420 V - 850 V |
| Max. Input MPPT current | 15 A / 15 A |
| Max. input short circuit current per MPPT | 22.5 A / 22.5 A |
| Rated Power | 10000 W |
| Max. AC Power | 11000 VA |
| Max. Output current | 16.7 A |
| Nominal grid voltage | 3 / N / PE, 220 V / 380 Vac, 230 V / 400 Vac |
| Grid voltage range | 310 Vac - 480 Vac ( According to local standard ) |
| Nominal frequency | 50 Hz / 60 Hz |
| Grid frequency range | 45 Hz - 55 Hz (According to local standard) |
| Active power adjustable range | 0~100 % |
| THDi | <3 % |
| Power factor | 1 default (adjustable+/-0. 8) |
| Max. efficiency | 98.50 % |
| European efficiency | 98.00 % |
| DC Reverse Polarity Protection | Yes |
| Anti-islanding protection | Yes |
| Leakage current protection | Yes |
| Ground fault monitoring | Yes |
| PV-array string fault monitoring | Yes |
| Anti reverse power function | Yes |
| DC switch | Yes |
| AFCI protection | Optional |
| Input / output SPD | PV- type II standard, AC: type II standard |
| Standard communication mode | RS485 / USB / Bluetooth, Optional: WiFi / GPRS |
| Ambient temperature range | -30 °C~+60 °C |
| Self-consumption at night | <1 W |
| Topology | Transformerless |
| Degree of protection | IP65 |
| Allowable relative humidity range | 0~100 % |
| Max. Operating altitude | 4000 m |
| Noise | <40 dB |
| Cooling | Natural |
| Display | LCD |
| Dimension | 430 mm x 385 mm x 82 mm |
| EMC | EN61000-3-2, EN61000-3-3, EN61000-3-11, EN61000-3-12, EN61000-6-1, EN61000-6-3 |
| Safety standards | IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068 (1,2,14,30) |
| Three Phase Grid Synchronization | Delivers balanced 3-phase power distribution across all lines to handle commercial electrical equipment seamlessly. |
| Dual MPPT Channel Optimization | Maximizes energy yield from two independent solar array strings facing different directions or inclinations. |
| Integrated Anti-Reverse / Zero Export | Built-in power control functionality lets you restrict grid feed-in to meet local DISCOM requirements. |
| Rugged IP65 Housing | Weatherproof design protects internal electronics against rain, dust, and aggressive environmental elements. |
| Real-Time Online Diagnostics | Plug-and-play USB WiFi/GPRS dongles provide instant remote monitoring via mobile application or web portal. |
| Natural Convection Cooling | Fanless heat dissipation structure reduces mechanical failure risks, ensures silent operation, and lowers maintenance needs. |
| Residential Solar Rooftops | Perfect for independent houses, villas, and residential apartments |
| Commercial Offices & Retail | Ideal for small-to-medium offices, retail stores, and service centers looking to offset grid energy consumption during daytime hours. |
| Educational Institutions | Suitable for schools, colleges, and training centers operating high daytime electrical loads. |
| Health & Hospitality Facilities | Powers clinics, small hotels, and banquet halls directly with green, clean solar electricity. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops
Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Havells. Key specifications include weight (approx.) 18 kg, recommended max. pv input power 15000 Wp, number of mpp trackers 2, number of dc inputs 1/1, max. input voltage 1100 V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops specifications
| Weight (Approx.) | 18 kg |
|---|---|
| Recommended Max. PV input power | 15000 Wp |
| Number of MPP trackers | 2 |
| Number of DC inputs | 1/1 |
| Max. Input voltage | 1100 V |
| Start-up voltage | 160 V |
| Rated input voltage | 650 V |
| MPPT operating voltage range | 140 V - 1000 V |
| Full power MPPT voltage range | 420 V - 850 V |
| Max. Input MPPT current | 15 A / 15 A |
| Max. input short circuit current per MPPT | 22.5 A / 22.5 A |
| Rated Power | 10000 W |
FAQs related to Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops
Is a GST invoice provided for Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops purchases?
+
Yes, every Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops order comes with an automatically generated GST invoice, useful for input tax credit claims and standard farm-business accounting.
Does Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops come with a warranty or after-sales support?
+
Warranty terms for Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
What if Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Is Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops suitable for both small farms and large agricultural operations?
+
ToolHaat lists Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
What is the bulk pricing structure for Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops?
+
Havells 10000 W Enviro GTi 1100TX-NG Three Phase Solar Grid Tie Inverter Dual MPPT IP65 for Commercial Solar Rooftops on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
