GROWATT · SKU: thagri10511

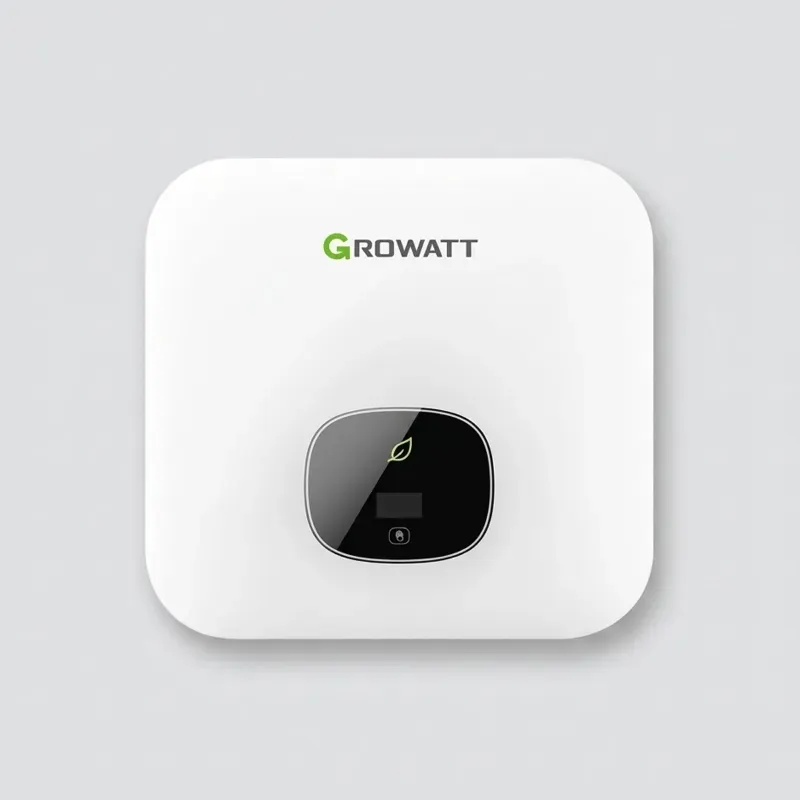

GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
In Stock
₹38,115₹49,000-22% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | GROWATT |
| Weight (Approx.) | 11 kg |
| Max. recommended PV power (for module STC) | 7500W |
| Max. DC voltage | 550V |
| Start voltage | 50V |
| Nominal voltage | 360V |
| MPP voltage range | 40V-550V |
| No. of MPP trackers | 2 |
| No. of PV strings per MPP tracker | 1 |
| Max. input current per MPP tracker | 18A |
| Max. short-circuit current per MPP tracker | 24A |
| AC nominal power | 5000W |
| Max. AC apparent power | 5000VA |
| Nominal AC voltage (range*) | 230V (160-300V) |
| AC grid frequency (range*) | 50/60Hz (45-55Hz/54-65Hz) |
| Max. output current | 22.7A |
| Adjustable power factor | 0.8leading...0.8lagging |
| THDi | <3% |
| AC grid connection type | Single phase |
| Max. efficiency | 98.4% |
| European efficiency | 97.5% |
| MPPT efficiency | 99.9% |
| DC reverse polarity protection | Yes |
| DC surge protection | Type II |
| Insulation resistance monitoring | Yes |
| AC surge protection | Type IIl |
| AC short-circuit protection | Yes |
| Grid monitoring | Yes |
| Anti-islanding protection | Yes |
| Residual-current monitoring unit | Yes |
| AFCI protection | Optional |
| Dimensions (W / H / D) | 375/350/158mm |
| Operating temperature range | -30°C ...+60°C |
| Nighttime power consumption | < 1W |
| Topology | Transformerless |
| Cooling | Natural convection |
| Protection degree | IP66 |
| Relative humidity | 0 - 100% |
| Altitude | 4000m |
| DC connection | H4/MC4(Optional) |
| AC connection | Connector |
| Display | OLED+LED |
| Interfaces | RS485/USB/WiFi/GPRS/RF/LAN : Yes/Yes/Optional/Optional/Optional/Optional |
| Warranty | 7 years |
| High Energy Yield | Boasts a maximum efficiency of 98.4% and utilizes advanced MPPT (Maximum Power Point Tracking) technology for maximizing power production. |
| Dual MPPT Trackers | Features two independent MPPTs (Maximum Power Point Trackers), which is ideal for complex roof layouts or situations with partial shading, ensuring optimal performance from both PV strings. |
| Over-Sizing Capability | Supports a high maximum recommended PV input power of up to 7500W (7.5 kW) on a 5 kW output, allowing for efficient over-sizing of the solar array. |
| User-Friendly Design | Extremely compact and lightweight (approx. 10.8kg) for easy, one-person installation.11 Includes a Touch Key and OLED Display for local monitoring and setup. |
| Robust Protection | Rated IP66 for high resistance to dust and water, suitable for outdoor mounting. Includes integrated Type II Surge Protection Device (SPD) on the DC side. |
| Advanced Safety | Features DC reverse polarity protection, ground fault monitoring, and an optional AFCI (Arc-Fault Circuit Interrupter) function for enhanced fire safety. |
| Future-Proof | Designed to be "Battery Ready" in the related XH series, often indicating a platform that allows for easy future integration with battery storage systems without extensive retrofit costs. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by GROWATT. Key specifications include weight (approx.) 11 kg, max. recommended pv power (for module stc) 7500W, max. dc voltage 550V, start voltage 50V, nominal voltage 360V. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use specifications
| Weight (Approx.) | 11 kg |
|---|---|
| Max. recommended PV power (for module STC) | 7500W |
| Max. DC voltage | 550V |
| Start voltage | 50V |
| Nominal voltage | 360V |
| MPP voltage range | 40V-550V |
| No. of MPP trackers | 2 |
| No. of PV strings per MPP tracker | 1 |
| Max. input current per MPP tracker | 18A |
| Max. short-circuit current per MPP tracker | 24A |
| AC nominal power | 5000W |
| Max. AC apparent power | 5000VA |
FAQs related to GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use
Does GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use come with a warranty or after-sales support?
+
Warranty terms for GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Can dealers or distributors get a custom quote for GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
How long does delivery take for GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use orders, including to rural areas?
+
Delivery timelines for GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use are shown at checkout based on your pincode. ToolHaat delivers pan-India, including rural and semi-urban locations, though larger equipment may have a longer transit window than smaller accessories.
Can I compare different brands and price points for GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use before buying?
+
Yes — ToolHaat lists GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Is GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use suitable for both small farms and large agricultural operations?
+
ToolHaat lists GROWATT 5 kW MIN5000TLX2Pro Solar Single Phase Inverter With 7 Years Warranty Designed for Residential Use across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
