Generic · SKU: thagri7615

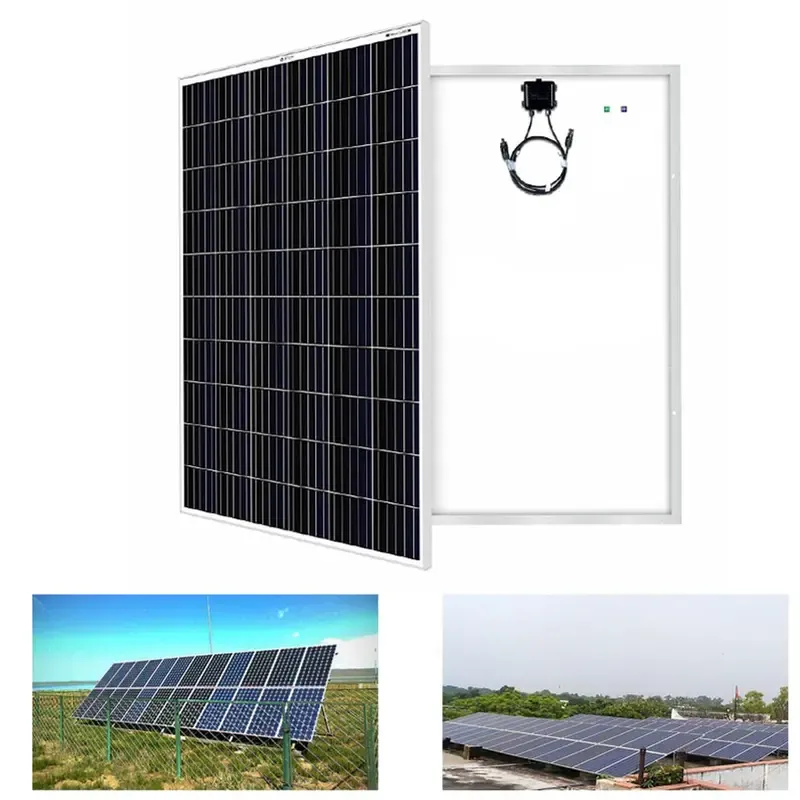

Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel
In Stock
₹17,771₹35,000-49% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Generic |
| Weight (Approx.) | 36 kg |
| Number of Cell | 72 |
| Voltage | 24 V |
| Junction Box | IP 67 rated with 3 bypass diodes |
| Cables & Connectors | 4 sq. m solar cable 1000mm, 2 Nos. black MC4 connectors |
| Superstrate | 3.2 mm high transmission low iron tempered glass |
| Cell Encapsulant | PID Free EVA (Ethylene Vinyl Acetate) †FC/UFC |
| Back sheet | Composite Film †White (Black & Transparent optional) |
| Frame | Silver Anodized Aluminum frame with twin wall profile |
| Mechanical Load Test | Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2) |
| Material | Heavy Duty Silver Anodized Aluminum Frame & Tempered Glass. |
| Dimension (L x W x H) | (1955 x 990 x 35/40)mm (± 10mm) |
| Maximum Power Pmax | 390 Wp |
| Maximum Voltage Vmpp | 40.22 V |
| Maximum Current Impp | 9.57 A |
| Open Circuit Voltage Voc | 49.05 V |
| Short Circuit Current Isc | 10.17 A |
| Module Efficiency | 19.50 |
| Tc of Open Circuit Voltage (α) | -0.300%/°k |
| Tc of Short Circuit Current (β) | 0.060%/°k |
| Tc of Power (γ) | -0.370%/°K |
| NOCT | 46± 2°C |
| Maximum Series fuse rating | 30A |
| Temperature Range | -40°C ti 85°C |
| Maximum System Voltage | 1000/1500 V DC |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel
Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel is listed under Solar Products in Agricultural Tools on ToolHaat. Key specifications include weight (approx.) 36 kg, number of cell 72, voltage 24 V, junction box IP 67 rated with 3 bypass diodes, cables & connectors 4 sq. m solar cable 1000mm, 2 Nos. black MC4 connectors. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel specifications
| Weight (Approx.) | 36 kg |
|---|---|
| Number of Cell | 72 |
| Voltage | 24 V |
| Junction Box | IP 67 rated with 3 bypass diodes |
| Cables & Connectors | 4 sq. m solar cable 1000mm, 2 Nos. black MC4 connectors |
| Superstrate | 3.2 mm high transmission low iron tempered glass |
| Cell Encapsulant | PID Free EVA (Ethylene Vinyl Acetate) †FC/UFC |
| Back sheet | Composite Film †White (Black & Transparent optional) |
| Frame | Silver Anodized Aluminum frame with twin wall profile |
| Mechanical Load Test | Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2) |
| Material | Heavy Duty Silver Anodized Aluminum Frame & Tempered Glass. |
| Dimension (L x W x H) | (1955 x 990 x 35/40)mm (± 10mm) |
FAQs related to Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel
What if Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Can dealers or distributors get a custom quote for Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel in large volumes?
+
Yes — use the RFQ feature for dealer or distributor-level Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel orders. Our sales team provides a dedicated quote and delivery plan for bulk agricultural equipment purchases.
Are spare parts or accessories for Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel also available on ToolHaat?
+
Many Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel categories on ToolHaat also list compatible accessories and spare parts separately — check related subcategories or use search to find parts matching your specific model.
Can I compare different brands and price points for Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel before buying?
+
Yes — ToolHaat lists Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
Does Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel come with a warranty or after-sales support?
+
Warranty terms for Gramstrong Heavy Duty 390 W 24 Volt Mono PERC Solar Panel vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
