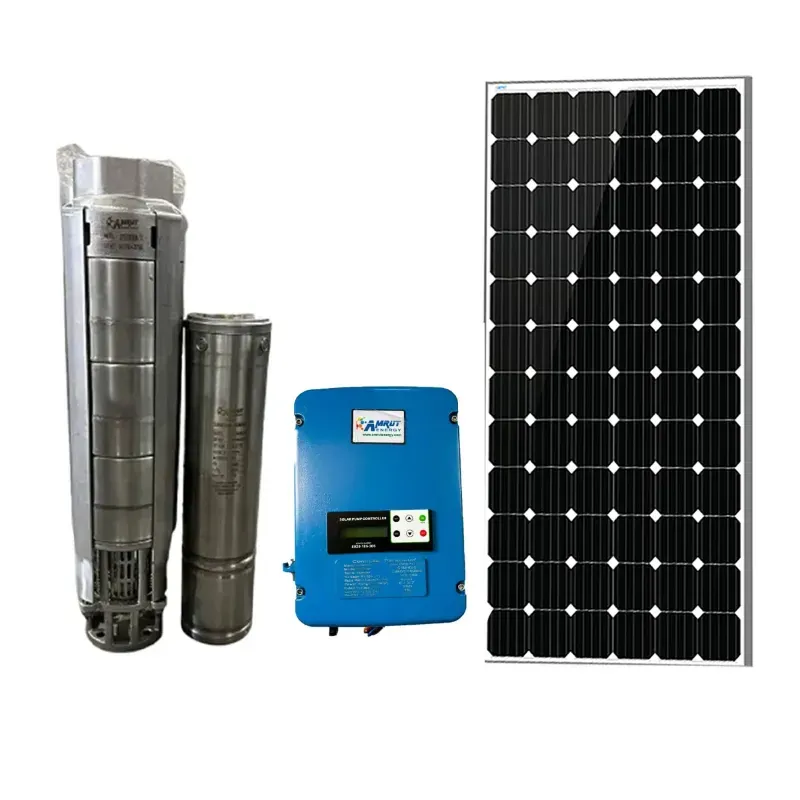

Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel
In Stock
₹1,70,280₹2,50,000-32% OFF
Bulk Pricing Tiers
🚚
Free Delivery
Orders above ₹2,000
📋
GST Invoice
Instant download
🔄
Easy Returns
7-day policy
⭐
Quality Checked
Verified listing
| Brand | Amrut Energy |
| Weight (Approx.) | 306 kg |
| Power | 5 HP |
| Voltage | 250 V |
| Frequency | 50Hz |
| Rpm | 4000 |
| Phase | Three Phase |
| Pressure | Low Pressure, Medium Pressure, High Pressure |
| Head | 30m |
| Current | 9A |
| Diameter | 95mm |
| Flow Rate | 430LPM |
| Voltage Range (V) | 100-450 |
| Solar Panel Capacity (W) | 4800 |
| Power Range | (P/KW) : 5/3.7 |
| Rated Voltage (V) | 250V |
| Current rating (A) | 15A |
| No. of Cells | 144 |
| Maximum Voltage Vmp (V) | 42.10V |
| Maximum Current I mp (A) | 12.96A |
| Open Circuit Voltage V oc (V) | 49.47V |
| Short Circuit Current I sc (A) | 13.75A |
| Maximum Series Fuse Rating (A) | 15.00A |
| Application Class | Class A |
| Power Tolerance (%) | 0 ± 3 |
| Operational Temperature (°C) | - 40° to + 85° |
| Module Dimensions (mm) | 2279×1134×35 |
| Maximum System Voltage (V) | 1000 |
| Fire Rating | Class C |
| 5HP Motor | Provides powerful and consistent water pumping. |
| 250V Capacity | Optimized for solar energy compatibility. |
| Oil-Filled Motor | Ensures smooth operation and extended durability. |
| Controller Included | Simplifies operation and enhances efficiency. |
| Versatile Applications | Ideal for irrigation, borewells, and water supply systems. |
| Eco-Friendly Design | Compatible with solar panels for sustainable energy use. |
⚖️
Deciding between a few options?
Add this product to compare it side-by-side with similar items.
About Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel
Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel is listed under Solar Products in Agricultural Tools on ToolHaat, supplied by Amrut Energy. Key specifications include weight (approx.) 306 kg, power 5 HP, voltage 250 V, frequency 50Hz, rpm 4000. ToolHaat sells to businesses with GST invoicing, bulk-quantity pricing and delivery across India.
Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel specifications
| Weight (Approx.) | 306 kg |
|---|---|
| Power | 5 HP |
| Voltage | 250 V |
| Frequency | 50Hz |
| Rpm | 4000 |
| Phase | Three Phase |
| Pressure | Low Pressure, Medium Pressure, High Pressure |
| Head | 30m |
| Current | 9A |
| Diameter | 95mm |
| Flow Rate | 430LPM |
| Voltage Range (V) | 100-450 |
FAQs related to Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel
What is the bulk pricing structure for Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel?
+
Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel on ToolHaat uses tiered bulk pricing — cost per unit drops as order quantity rises, shown on the product page. For dealer-volume or distributor-level quantities, an RFQ gets you a dedicated quote.
What if Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel arrives damaged or doesn’t match the listed specifications?
+
Contact ToolHaat support with your order ID and photos if Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel arrives damaged or doesn’t match the listing. Replacement or refund is handled per our returns policy, with priority for equipment needed during active farming seasons.
Does Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel come with a warranty or after-sales support?
+
Warranty terms for Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel vary by vendor and brand — check the product listing for specific coverage. ToolHaat support can help connect you with the vendor for warranty claims or service queries after purchase.
Is Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel suitable for both small farms and large agricultural operations?
+
ToolHaat lists Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel across a range of capacities and specifications — check individual listings for the duty cycle, coverage area, or output relevant to your farm size before ordering.
Can I compare different brands and price points for Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel before buying?
+
Yes — ToolHaat lists Amrut Energy 5 HP 30 m Oil Filled Solar Submersible Pump With Controller & 545 W Monocrystalline Solar Panel from multiple vendors and brands at different price points and specifications, so you can compare before committing to a bulk purchase.
